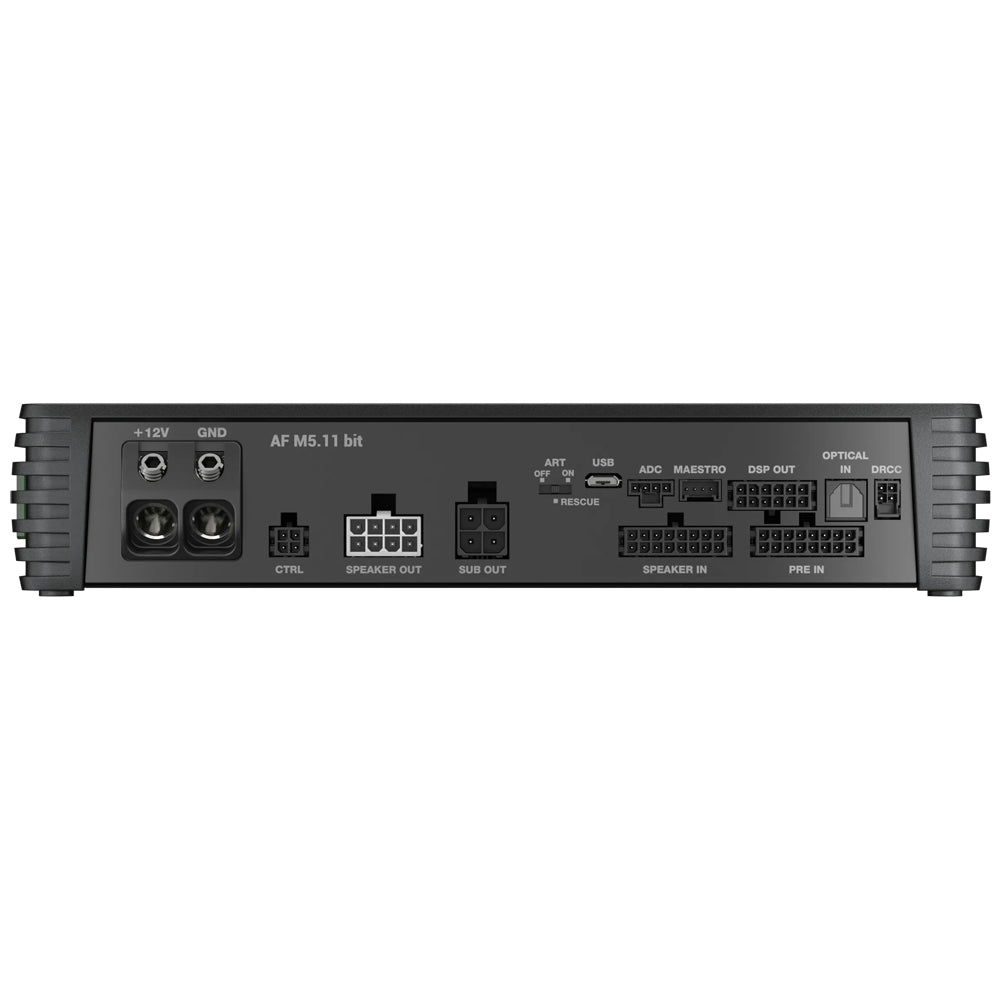

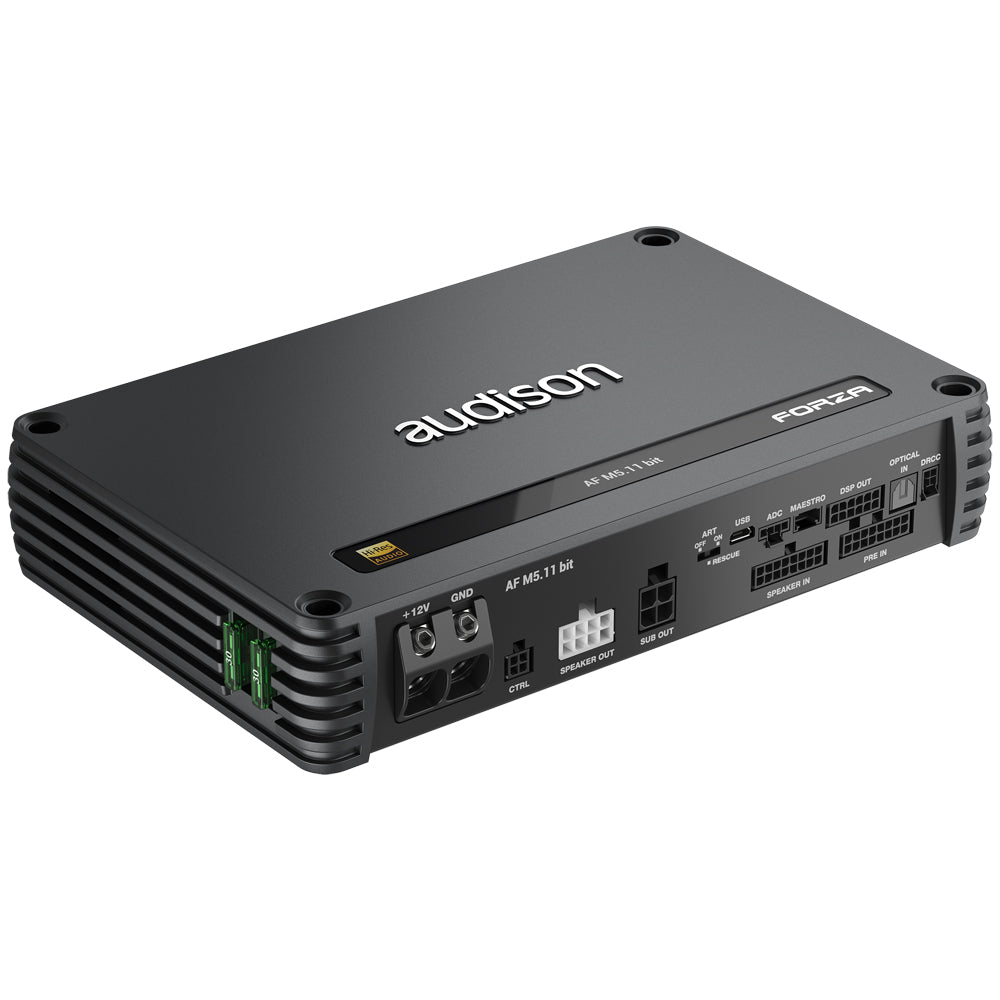

Audison AF M5.11 bit
Move your mouse over image or click to enlarge
Audison AF M5.11 bit Audison AF M5.11 bit

  • Audison AF M5.11 bit

    *free shipping

  • $ 1,499.99

    • 5-Channel Class-D Hi-Res DSP Amplifier
    • DSP: 24 bit/ 96 kHz
    • 1200 Watts Total Power
    • Power Rating:
      • 4 Ohm: 100 watts x 4 ch. + 400 watts x 1 ch.
      • 4 Ohm Bridged: 300 watts x 2 ch. + 400 watts x 1 ch.
      • 2 Ohm: 150 watts x 4 ch. + 600 watts x 1 ch.
      • 4 Ohm / 2 Ohm: 300 watts x 2 ch. + 600 watts x 1 ch.
    • Filter Type: Full/High/Low/Band-Pass
    • Linkwitz-Riley: 12/24/36/48 dB/Oct.
    • Butterworth: 6/12/18/24/30/36/42/48 dB/Oct.
    • Bessel: 6/12/18/24/30/36/42/48 dB/Oct.
    • Chebyshev: 6/12/18/24/30/36/42/48 dB/Oct.
    • QLP: 6 dB/Oct.
    • Analog Input Equalizer (20 Hz - 20 kHz): 12 Biquad + Delay
    • Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
    • (8) High/Low Level Inputs
    • Optical Toslink Digital Input
    • (11) DSP-Processed Outputs
    • (6) Pre-Outs
    • Time Alignment
    • Automatic Remote Turn On/Off
    • 2 Independent Power Supplies (1 Amplifier + 1 DSP)
    • Software/PC Requirements: Windows 10/Windows 11 (min. res. 1024x768)
    • Electrical Signal Analysis for Each Input Channel
    • Acoustic Analysis
    • Dimensions: 9.44" x 6.14" x 1.85"
    • 1-Year Dynamic Autosound Warranty
    • Availability : In-Stock
