Home / Products / Audison AF C8.14 bit

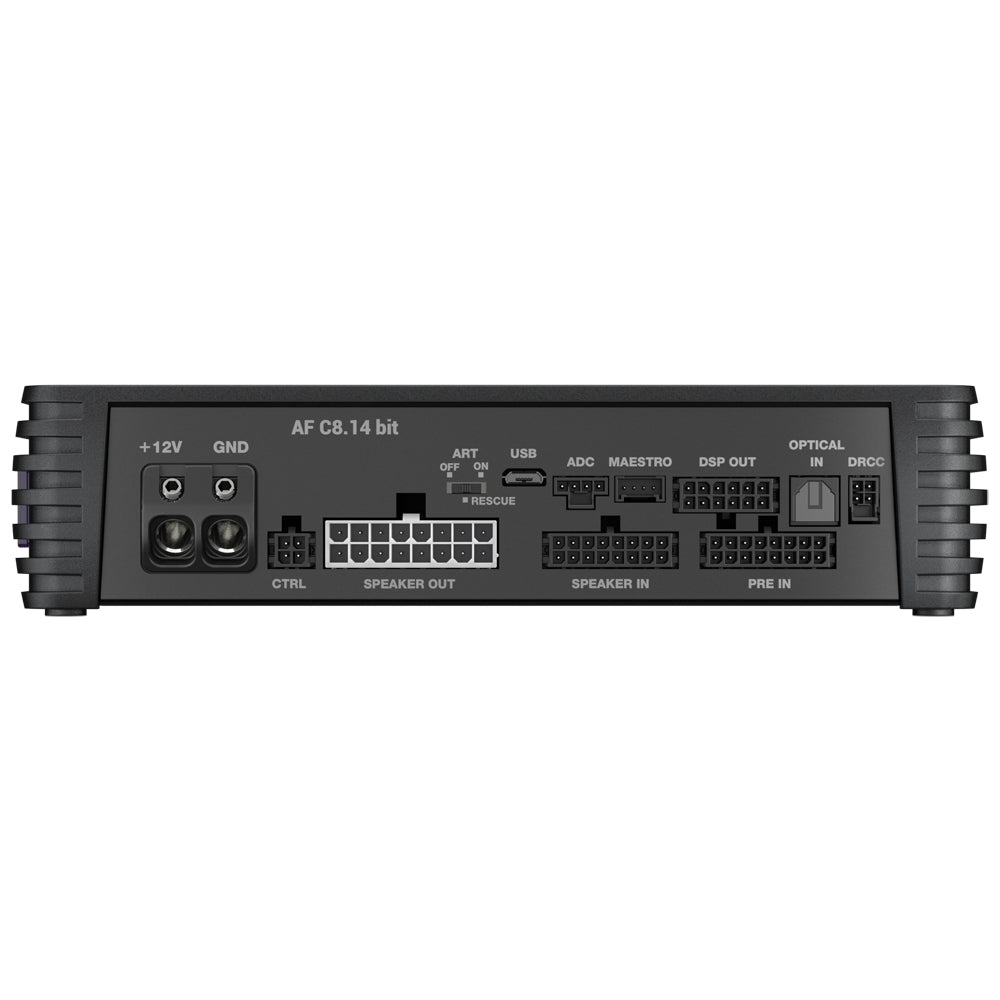

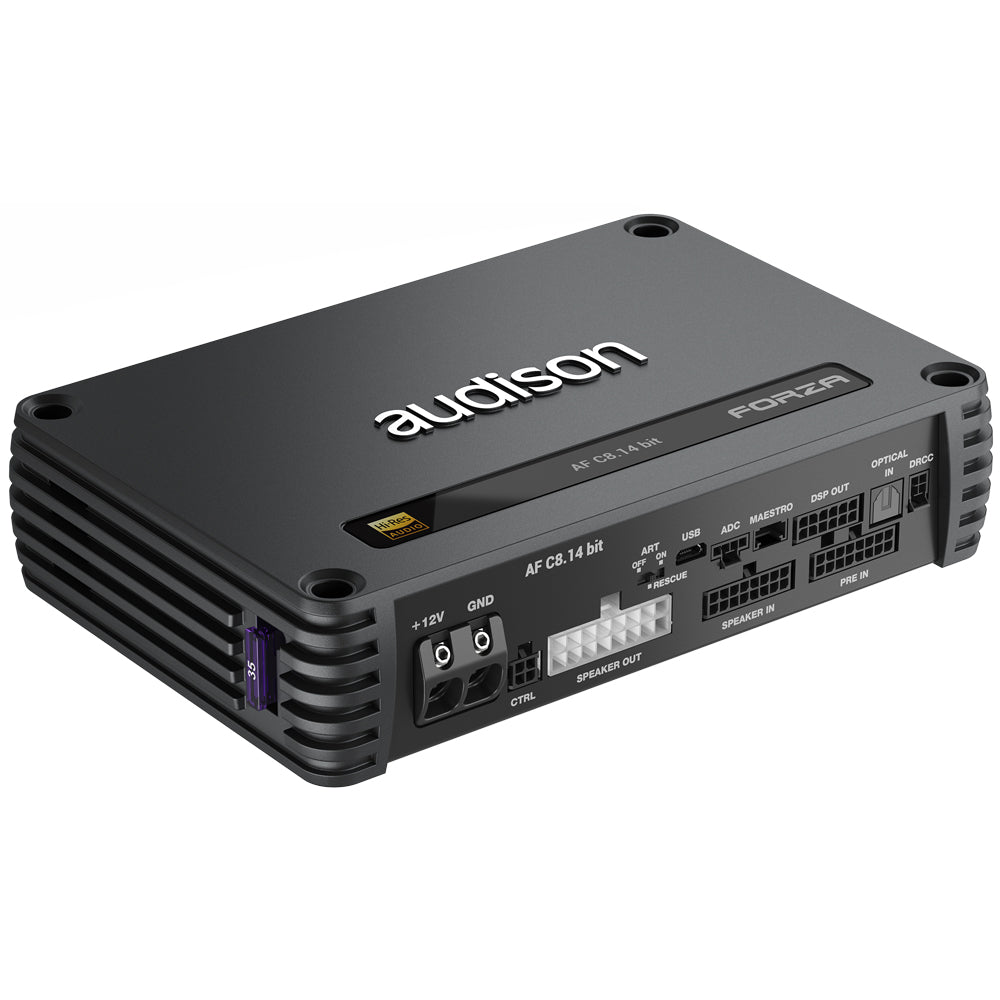

Audison AF C8.14 bit
Move your mouse over image or click to enlarge
Audison AF C8.14 bit Audison AF C8.14 bit

  • Audison AF C8.14 bit

    *free shipping

  • $ 1,149.99

    • 8-Channel Class-D Hi-Res DSP Amplifier
    • DSP: 24 bit/ 96 kHz
    • 800 Watts Total Power
    • Power Rating:
      • 4 Ohm: 65 watts x 8 ch.
      • 4 Ohm Bridged: 200 watts x 4 ch.
      • 2 Ohm: 100 watts x 8 ch.
    • Filter Type: Full/High/Low/Band-Pass
    • Linkwitz-Riley: 12/24/36/48 dB/Oct.
    • Butterworth: 6/12/18/24/30/36/42/48 dB/Oct.
    • Bessel: 6/12/18/24/30/36/42/48 dB/Oct.
    • Chebyshev: 6/12/18/24/30/36/42/48 dB/Oct.
    • QLP: 6 dB/Oct.
    • Analog Input Equalizer (20 Hz - 20 kHz): 12 Biquad + Delay
    • Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
    • (8) High/Low Level Inputs
    • Optical Toslink Digital Input
    • (8) Amplified Outputs
    • (6) Pre-Outs
    • Time Alignment
    • Automatic Remote Turn On/Off
    • 2 Independent Power Supplies (1 Amplifier + 1 DSP)
    • Software/PC Requirements: Windows 10/Windows 11 (min. res. 1024x768)
    • Electrical Signal Analysis for Each Input Channel
    • Acoustic Analysis
    • Dimensions: 7.87" x 5.27" x 1.85"
    • 1-Year Dynamic Autosound Warranty
    • Availability : In-Stock

  • Share this product :

  • * FREE GROUND SHIPPING FOR ALL U.S. DOMESTIC ORDERS EXCLUDING ALASKA, HAWAII, AND PUERTO RICO

  • 8-Channel Class-D Hi-Res DSP Amplifier
  • DSP: 24 bit/ 96 kHz
  • 800 Watts Total Power
  • Power Rating:
    • 4 Ohm: 65 watts x 8 ch.
    • 4 Ohm Bridged: 200 watts x 4 ch.
    • 2 Ohm: 100 watts x 8 ch.
  • Filter Type: Full/High/Low/Band-Pass
  • Linkwitz-Riley: 12/24/36/48 dB/Oct.
  • Butterworth: 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel: 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev: 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP: 6 dB/Oct.
  • Analog Input Equalizer (20 Hz - 20 kHz): 12 Biquad + Delay
  • Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
  • (8) High/Low Level Inputs
  • Optical Toslink Digital Input
  • (8) Amplified Outputs
  • (6) Pre-Outs
  • Time Alignment
  • Automatic Remote Turn On/Off
  • 2 Independent Power Supplies (1 Amplifier + 1 DSP)
  • Software/PC Requirements: Windows 10/Windows 11 (min. res. 1024x768)
  • Electrical Signal Analysis for Each Input Channel
  • Acoustic Analysis
  • Dimensions: 7.87" x 5.27" x 1.85"
  • 1-Year Dynamic Autosound Warranty
