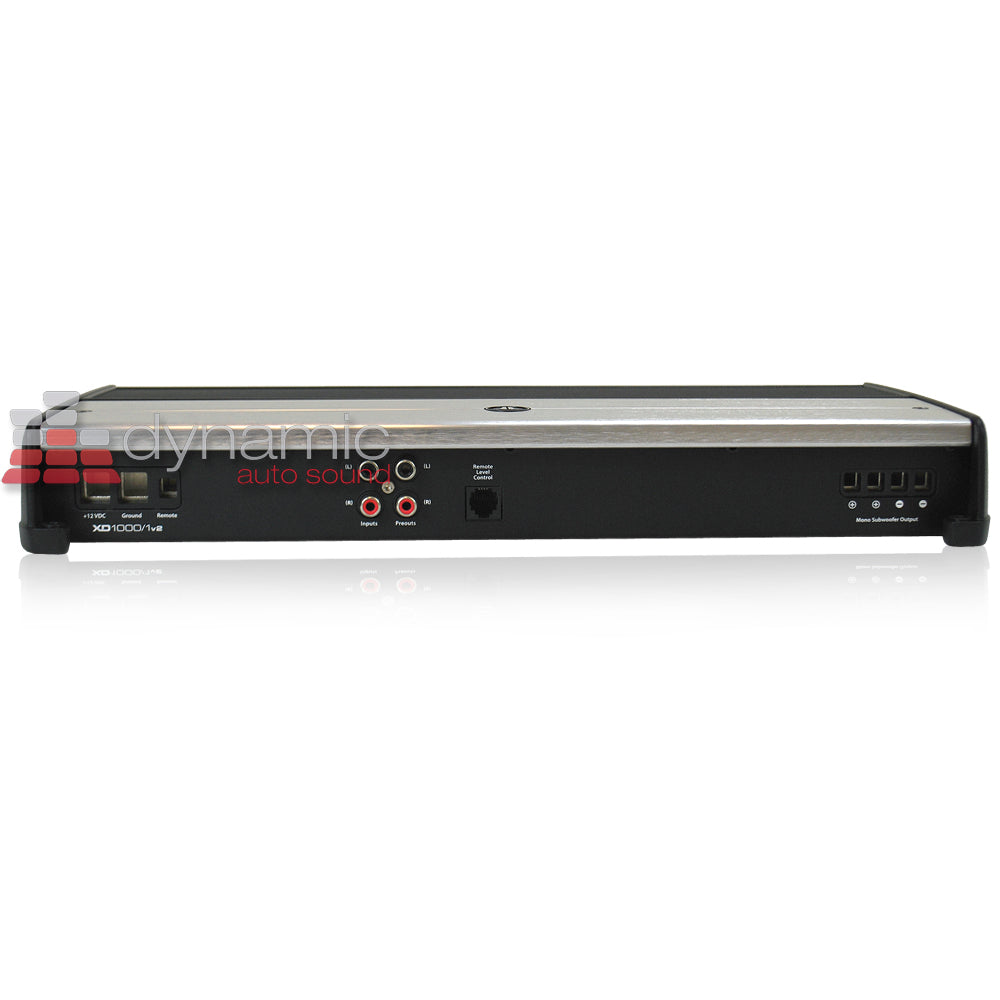

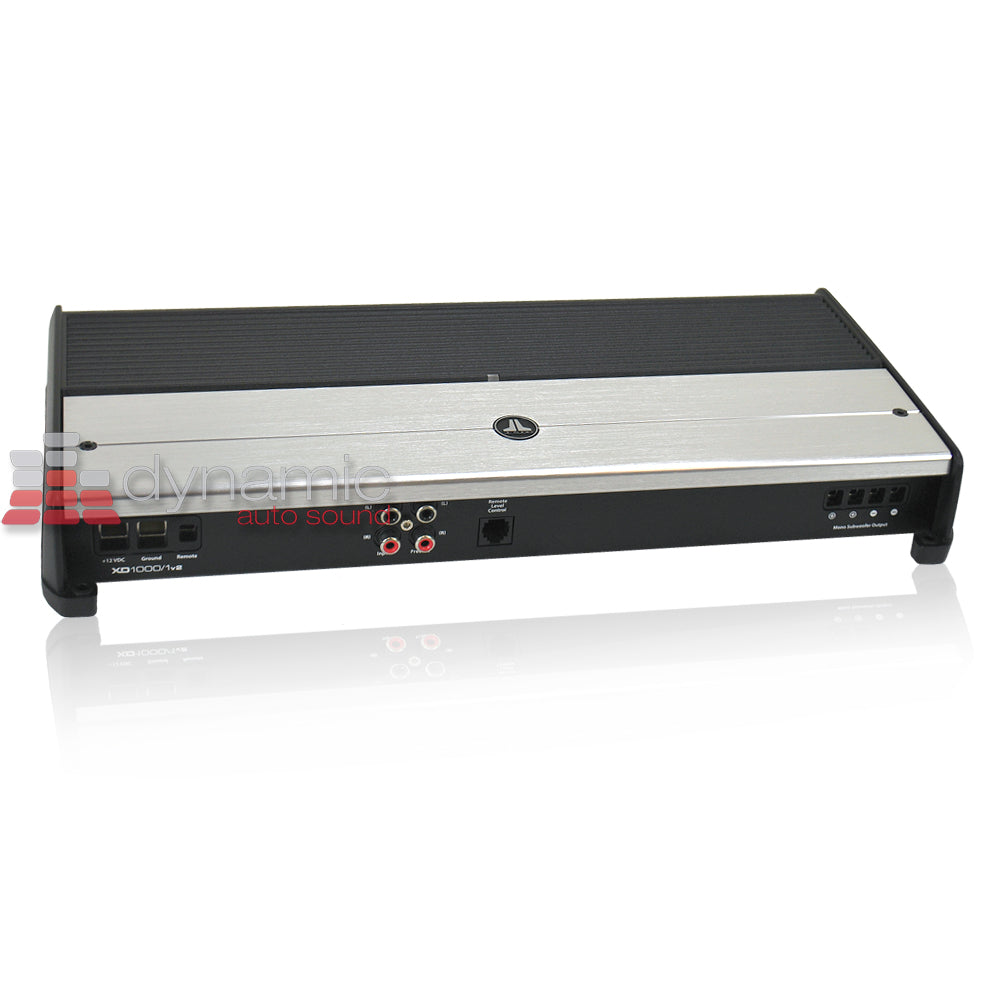

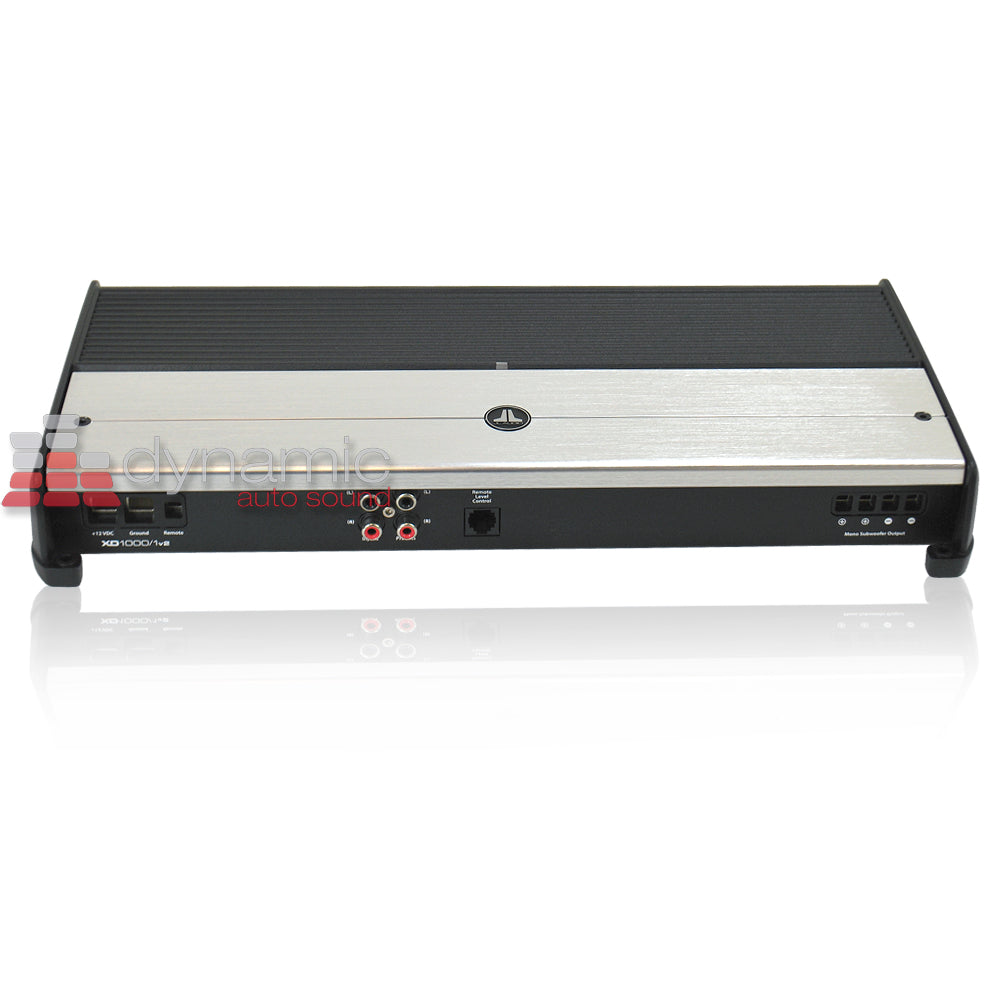

  • JL AUDIO XD1000/1v2

    *free shipping

  • $ 569.95

    • Monoblock Class D Car Audio Subwoofer Amplifier
    • RMS Power Handling:
      • 600 Watts @ 4 Ohm x 1 Chan.
      • 800 Watts @ 3 Ohm x 1 Chan.
      • 1000 Watts @ 2 Ohm x 1 Chan.
    • max Power Handling: 1000 Watts
    • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
    • S/N Ratio, referred to highest rated power: 83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • S/N Ratio, referred to 1 W: 53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • Damping Factor @ 4 ?: 1000 / 50 Hz
    • Damping Factor @ 2 ?: 500 / 50 Hz
    • THD+N @ Rated Power: 1% @ 2 ? per Ch.
    • Input Voltage Range @ RCA Inputs: 200 mV - 8 V RMS
    • Min Copper Power / Ground Wire Gauge: 4 AWG wire
    • Fuse Rating: 80 A (AFS, AGU or MaxiFuseÌ_åÇí«̴Ìö)
    • Filter Modes: Low-Pass only
    • Filter Slope (dB/Octave): 12 dB or 24 dB
    • Filter Frequency Range: 50-500 Hz
    • H2.05 in / 52 mm W14.73 in / 374 mm D7.09 in / 180 mm
    • 1-year Dynamic AutoSound Warranty
  • Availability : In-Stock
  • Share this product :

  • * FREE GROUND SHIPPING FOR ALL U.S. DOMESTIC ORDERS EXCLUDING ALASKA, HAWAII, AND PUERTO RICO

  • Monoblock Class D Car Audio Subwoofer Amplifier
  • RMS Power Handling:
    • 600 Watts @ 4 Ohm x 1 Chan.
    • 800 Watts @ 3 Ohm x 1 Chan.
    • 1000 Watts @ 2 Ohm x 1 Chan.
  • max Power Handling: 1000 Watts
  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: 83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: 53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 ?: 1000 / 50 Hz
  • Damping Factor @ 2 ?: 500 / 50 Hz
  • THD+N @ Rated Power: 1% @ 2 ? per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 8 V RMS
  • Min Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 80 A (AFS, AGU or MaxiFuseÌ_åÇí«̴Ìö)
  • Filter Modes: Low-Pass only
  • Filter Slope (dB/Octave): 12 dB or 24 dB
  • Filter Frequency Range: 50-500 Hz
  • H2.05 in / 52 mm W14.73 in / 374 mm D7.09 in / 180 mm
  • 1-year Dynamic AutoSound Warranty
