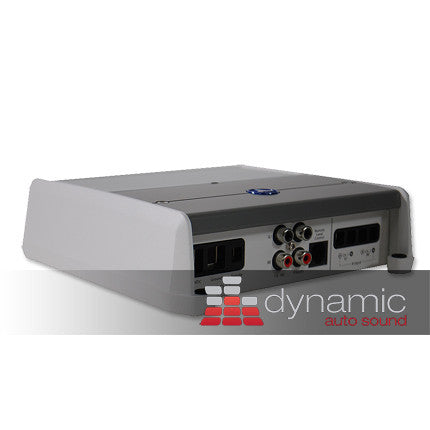

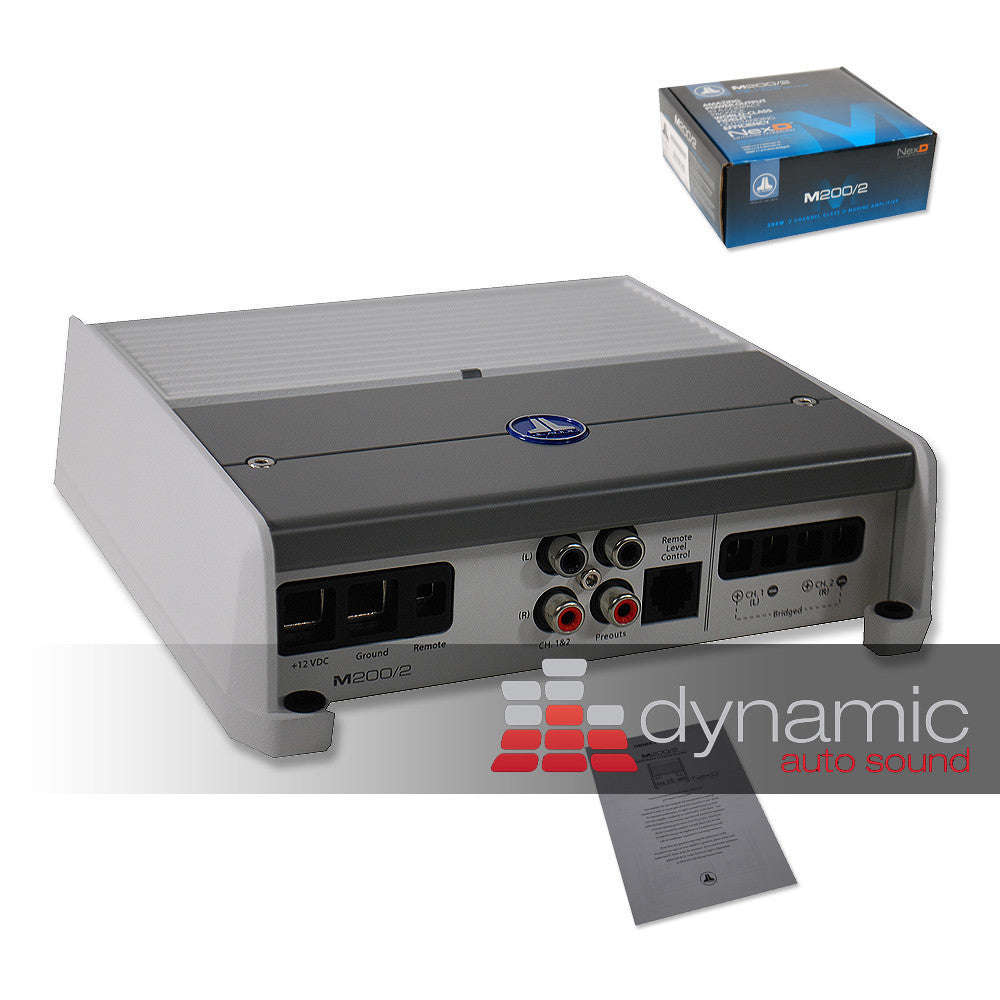

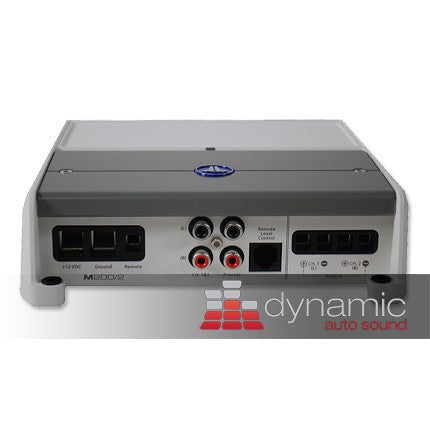

  • JL AUDIO M200/2

    *free shipping

  • $ 319.95

    • M Series 2-Channel Class D Full-Range Amplifier
    • RMS Power Rating (14.4V):
      • 4 ohms: 75 watts x 2 chan.
      • 2 ohms: 100 watts x 2 chan.
      • Bridged, 8 ohms: 150 watts x 1 chan.
      • Bridged, 4 ohms: 200 watts x 1 chan.
    • RMS Power Rating (12.5V):
      • 4 ohms: 60 watts x 2 chan.
      • 2 ohms: 90 watts x 2 chan.
      • Bridged, 8 ohms: 120 watts x 1 chan.
      • Bridged, 4 ohms: 180 watts x 1 chan.
    • Unregulated MOSFET switching type power supply
    • NexD Ultra-High Speed Class D topology
    • LED power (green) and protect (red/yellow) indicators
    • Independent input sensitivity controls
    • State-of-the-art microelectronic components
    • 2/1 channel operation
    • Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
    • Studio-grade signal processing with fully variable crossover filters
    • Extruded aluminum alloy system setting security cover
    • Total amplifier efficiencies exceeding 80%
    • Noise-killing, highly flexible differential-balanced inputs
    • Preamp RCA outputs to daisy chain multiple amps
    • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
    • Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
    • Silver-plated RCA level inputs
    • Silver-plated screw terminals
    • Input sensitivity:
      • Level: 100mV-4V
    • Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
    • Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
    • Damping factor: >150 @ 4 ohms per chan./ 50Hz
    • Frequency response: 12-22,000 Hz
    • Dimensions: 8-9/16"L x 7-1/8"W x 2-1/16"H
    • 4-gauge power and ground wiring is required for installation.
    • 1-year Dynamic AutoSound Warranty
  • Availability : In-Stock
  • Share this product :

  • * FREE GROUND SHIPPING FOR ALL U.S. DOMESTIC ORDERS EXCLUDING ALASKA, HAWAII, AND PUERTO RICO
