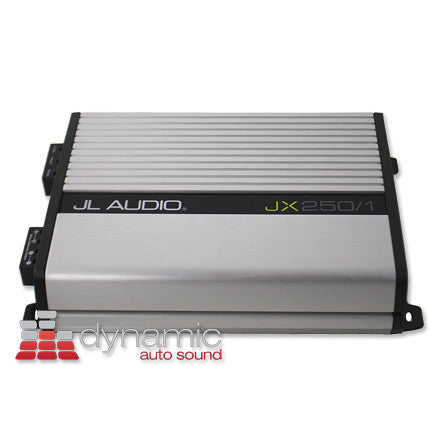

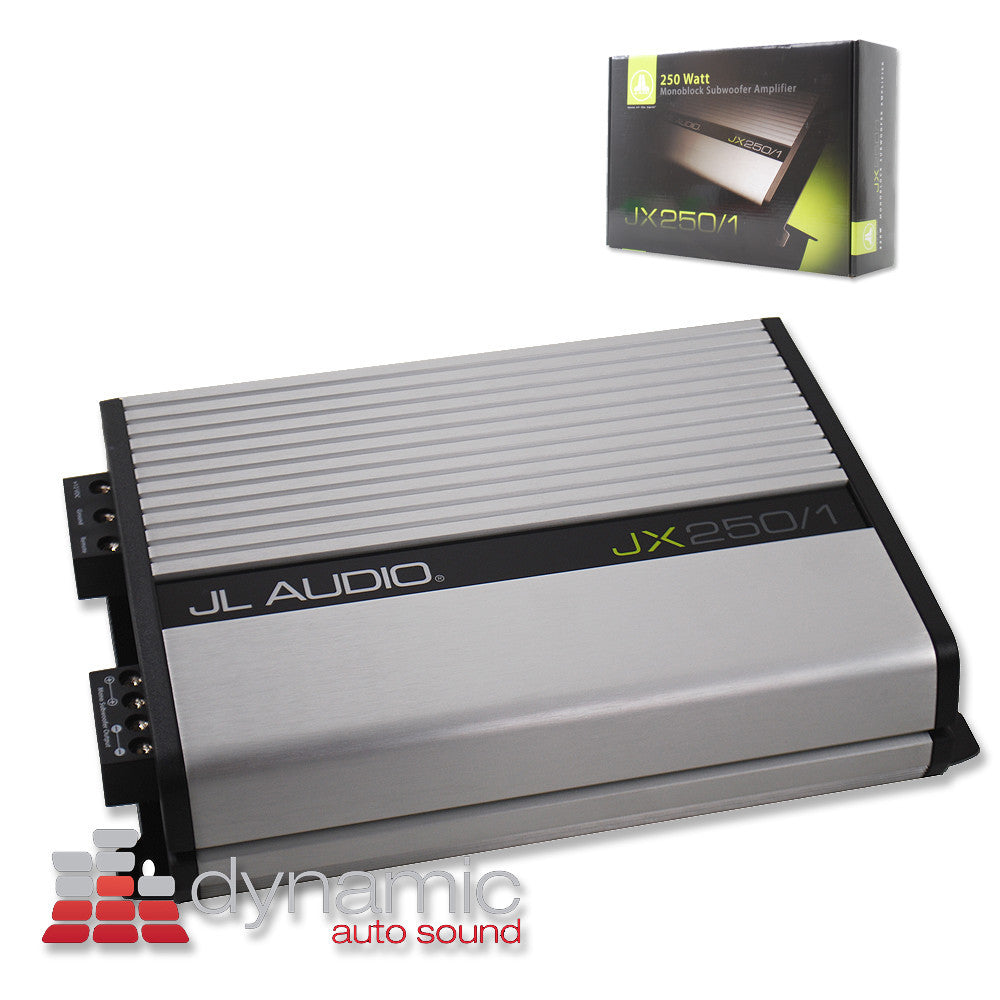

  • JL AUDIO JX250/1D

    *free shipping

  • $ 199.99

    • JX Series 1-Channel Class A/B Car Amplifier
    • RMS Power Rating (@ 14.4V):
      • 4 ohms: 175 watts x 1 chan.
      • 3 ohms: 210 watts x 1 chan.
      • 2 ohms: 250 watts x 1 chan.
    • RMS Power Rating (@ 12.5V):
      • 4 ohms: 130 watts x 1 chan.
      • 3 ohms: 170 watts x 1 chan.
      • 2 ohms: 210 watts x 1 chan.
    • Unregulated PWM switching type power supply
    • Remote bass level input JL Audio RBC-1 sold separately)

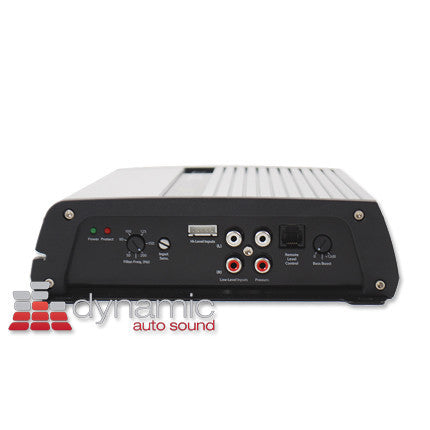

    • LED power (green) and protect (red) indicators
    • Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
    • Soft start turn-on prevent clicking and popping when system turns on
    • 1 channel operation
    • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
    • Preamp RCA outputs to daisy chain multiple amps
    • 3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
    • Heavy duty aluminum alloy heat sink for effective heat dissipation
    • Nickel-plated RCA level inputs
    • Nickel-plated screw terminals
    • Input sensitivity:
      • Low level: 200mV-4V
      • High level: 2.0V-10V
    • Variable low-pass filter (50-200 Hz, 12 dB/octave)
    • Damping factor: >160 @ 4 ohms / >80 @ 2 ohm
    • Frequency response: 10-150 Hz (+/? 1 dB)
    • Dimensions: 11L x 7-3/4"W x 2-1/8"H
    • 8-gauge power and ground wiring is required for installation
    • 1 Year Dynamic AutoSound Warranty
